Novice-III 135mm 2-3S 3 Inch FPV Racing Drone RTF & Fly more w/ 5.8G 40CH EV800 Goggles 2.4G ER8 Transmitter RC

Description

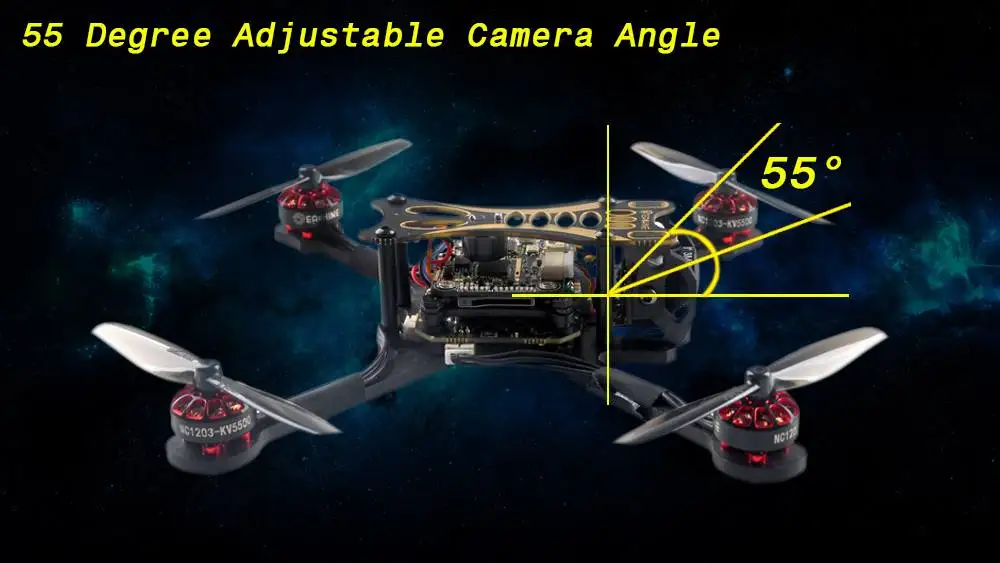

Specifications: Item Name: Novice-III 2-3S Toothpick RTF & Fly more Wheelbase: 135mm Size: 115mm*110mm*40mm Weight: 62g(without battery) Features: New toothpick F4 flight controller Internal SPI Frsky D8/D16 receiver (Dual antenna and with PA) Powerful and smoothly and long flight time (about 8~10 Mins) Led Strip ready Built-in Buzzer ready New design 1203 KV5500 motors Camera Angle adjustable VTX power switchable 25mw~400mw Smartaudio ready , change VTX bands, powers, channels via OSD 720P DVR ready (Analog 1280*720) Real Ready to fly Compatible both for 2s-3s Lipo/LIHV Spare parts specifications:

Motor	Mode: EX1203 KV options: KV5500 Configu-ration:9N12P Stator Diamter:15mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight(g):4.5g
Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 8V-17V) Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Frsky D8/D16 SPI receiver Built-in 2.4G Power Amplification Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 70A Built-in 5V 1.5A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v)Current: 10A continuous 12A (5 seconds) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_7.HEX Default protocol: DSHOT600
Internal Frsky NON-EU receiver Version	SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter both D8 mode and D16 mode Channels: 8ch/16ch Dual antenna Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 400m
VTX&DVR	Output power: 25~400mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 400mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight:3.4g
Caddx EOS2	1/3" CMOS Sensor 1200 TVL 2.1mm lens 4:3 Image size NTSC Global WDR Internal Synchronization
Lipo Battery	Capacity:450mAh Voltage:11.4v Continuous Discharge Rate: 75C Size: 66mmx21mmx18mm Weight: 42g Connector: XT30
Eachine EV800 Goggles	Screen size: 5.0 inch Screen resolution: 800*480 (No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV View Angle: 140/120 degree(Horizontal/Vertical) 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate no distort of light; Built-in 3.7V/2000mAh battery; Each battery circle offer around 3.5hr working time; 5-12V wide recharging voltage range, typical recharging voltage is 5V Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
Eachine ER8 2.4G Radio	Brand Name:Eachine Frequency:2.4Ghz Channels: 8 Mode: Mode 2 Firmware: OPENTX 2.19 Working voltage:7.4v~12v Frsky D8 receiver compatible Distance: >1000m (depends on actual situation) Size: 200x150x80mm

Package Included: RTF Version 1 x 135mm Toothpick Frame 1 x F4 Flight Controller 4 x NC1203 KV5500 Motor 2 x HQPROP T3*2 bi-blade propeller (2cw+2ccw) 1 x Caddx EOS2 new version 4:3 Camera 1 x Eachine Pegasus VTX: 5.8g 25mw~400mw switchable built-in 720p DVR 2 x Tattu 11.1v 450mah 75C Battery 1 x 2-4S Balance Charger 1 x Eachine EV800 Goggles 1 x Eachine ER8 2.4G Transmitter 1 x Propeller Disassemble Tool 1 x Screwdriver Fly more Version 1 x 135mm Toothpick Frame 1 x F4 Flight Controller 4 x NC1203 KV5500 Motor 2 x HQPROP T3*2 bi-blade propeller (2cw+2ccw) 1 x Caddx EOS2 new version 4:3 Camera 1 x Eachine Pegasus VTX: 5.8g 25mw~400mw switchable built-in 720p DVR 6 x Tattu 11.1v 450mah 75C Battery 1 x 2-4S Balance Charger 1 x Eachine EV800 Goggles 1 x Eachine ER8 2.4G Transmitter 1 x Propeller Disassemble Tool 1 x Screwdriver
